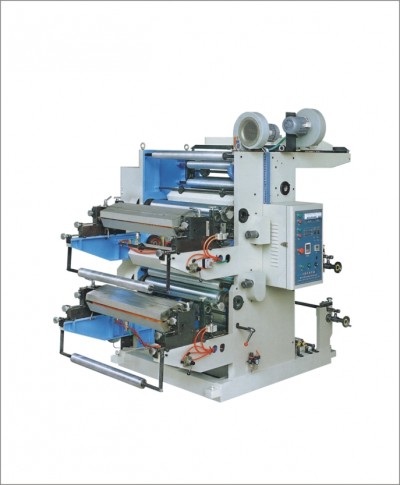

YT2600 Two color flexible printing machine

YT2600 Two color flexible printing machine

Application:

Introduce sensitization resin as flexible printing plate, suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and roll paper, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.



Performance and Features:
1. Easy operation, flexible starting, accurate color register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6. 360 continuous and adjustable longitudinal register device.
7. The frequency control of motor speed adapts to different printing speeds.
8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.





Model YT2600 YT2800 YT21000
Max. printing material width 600mm 800mm 1000mm
Max. printing width 560mm 760mm 960mm
Max. printing length 191-914mm 191-914mm 191-914mm
Max. diameter of roller ф450mm ф450mm ф450mm
Printing speed 5-50m/min 5-50m/min 5-50m/min
Plate thickness 2.38mm 2.38mm 2.38mm
Total power 8kw 10kw 12kw
Weight of machine 1800kg 2000kg 2200kg
Machine dimension 2300×1860×2145mm 2300×2060×2145mm 2300×2260×2145mm
